Specifications:
- Model: ARC-WS2811-60RGB
- LED Type: SMD5050
- LED QTY: 60LED/M
- Pixels: 20PCS/M
- Input Voltage: DC12V
- Power: 14.4W/M
- Light Efficiency: 504lm/m
- Color: RGB
- PCB Width: 10mm
- Grade: IP20/IP54/IP65/IP68
- Dimensions: 5000*10mm
- Packaging: 5M/roll

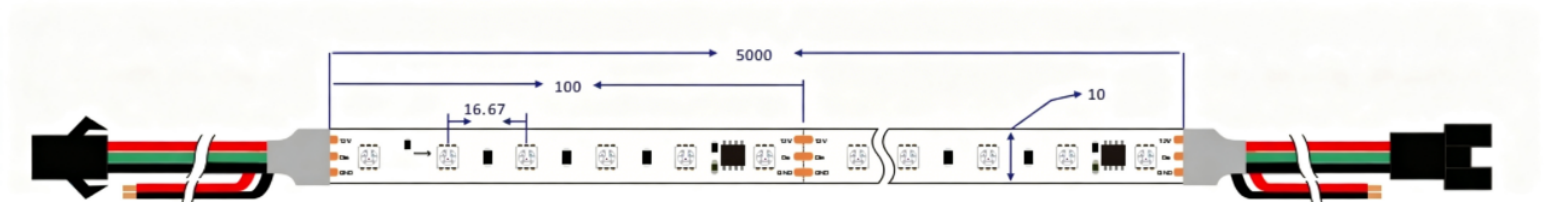

Dimension:
Accessories:
Aluminum Profiles
Power Supplies
Certificates
Other Models
| Part NO. | LED QTY | Power | Lumen(@4000K Ra90 IP20) | Voltage | CRI | IP Rating | PCB Width |
| ARC-2835-60W | 60LED/M | 6W/M | 600lm/M | DC12V/DC24V | 80/90/95 | IP20/54/65/67 | 8/10mm |
| ARC-2835-120W | 120LED/M | 12W/M | 1200lm/M | DC12V/DC24V | 80/90/95 | IP20/54/65/67 | 6/8/10mm |
| ARC-2835-168W | 168LED/M | 15.6W/M | 1560lm/M | DC12V/DC24V | 80/90/95 | IP20/54/65/67 | 6/8/10mm |
| ARC-2835-120WW | 120LED/M | 6W/M | 600lm/M | DC12V | 80/90/95 | IP20/54/65/67 | 8mm |
| ARC-2835-240W2 | 240LED/M | 14.88W/M | 1488lm/M | DC24V | 80/90/95 | IP20/54/65/67 | 15mm |
| ARC-2835-240W | 240LED/M | 19.2W/M | 1920lm/M | DC24V | 80/90/95 | IP20/54/65/67 | 10mm |
| ARC-2835-180W | 180LED/M | 18W/M | 1800lm/M | DC24V | 80/90/95 | IP20/54/65/67 | 10mm |
Waterproof Grade
