DC24V 2835 LED strip with 60 LEDs per meter

Specifications:

- Model: ARC-2835-60W
- LED Type: SMD2835
- LED QTY: 60LED/M
- Input Voltage: DC24V
- Power: 6W/M
- Light Efficiency: 100lm/W
- Luminous Flux: 600lm
- CRI: ≥ 80/90/95
- Color: 3000K/4000K/6000K
- PCB Width: 8/10mm

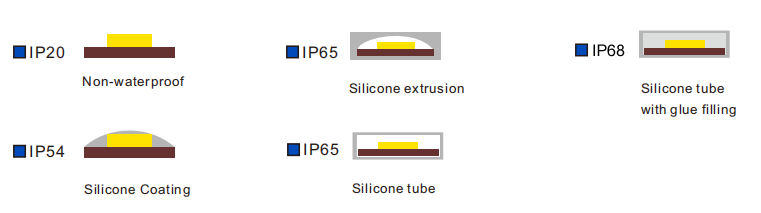

- Grade: IP20/IP54/IP65/IP68
- Dimensions: 5000*10mm
Note: PCB width, CRl, power and lumen can be customized

Email: info@archled.net

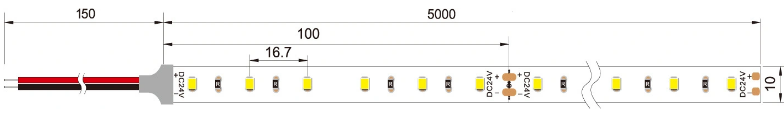

Dimension:

Accessories:

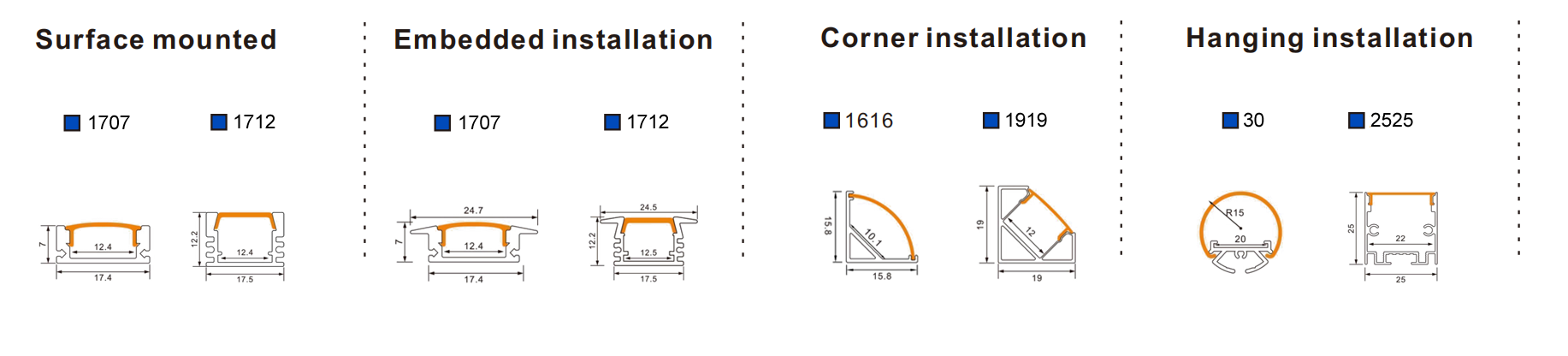

Aluminum Profiles

led light top 001.png

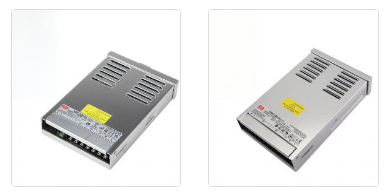

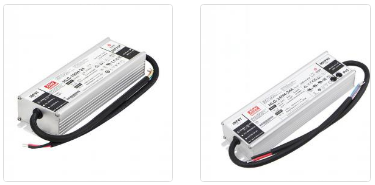

Power Supplies

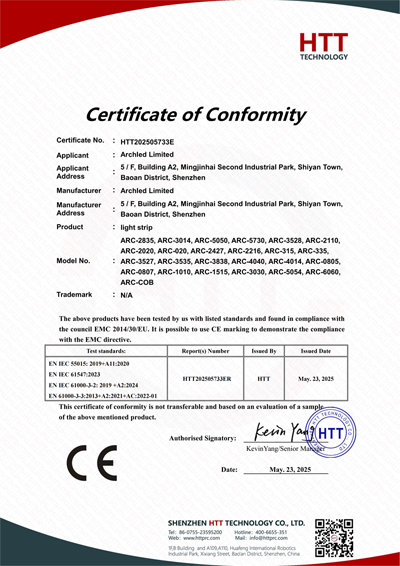

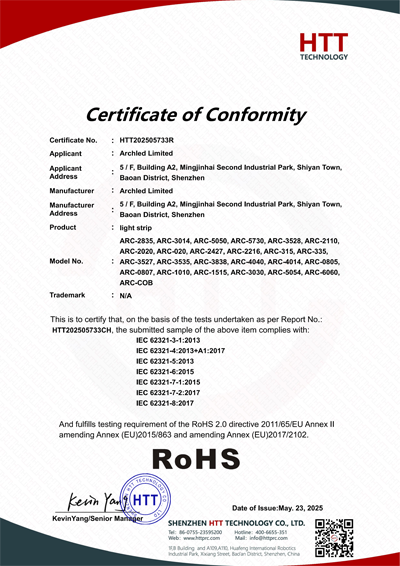

Certificates

EMC证书 -HTT202505733E_01副本.png ROHS证书 -HTT202505733R_01副本.png

Other Models

Part NO.	LED QTY	Power	Lumen(@4000K Ra90 IP20)	Voltage	CRI	IP Rating	PCB Width
ARC-2835-60W	60LED/M	6W/M	600lm/M	DC12V/DC24V	80/90/95	IP20/54/65/67	8/10mm
ARC-2835-120W	120LED/M	12W/M	1200lm/M	DC12V/DC24V	80/90/95	IP20/54/65/67	6/8/10mm
ARC-2835-168W	168LED/M	15.6W/M	1560lm/M	DC12V/DC24V	80/90/95	IP20/54/65/67	6/8/10mm
ARC-2835-120WW	120LED/M	6W/M	600lm/M	DC12V	80/90/95	IP20/54/65/67	8mm
ARC-2835-240W	240LED/M	14.88W/M	1488lm/M	DC24V	80/90/95	IP20/54/65/67	15mm
