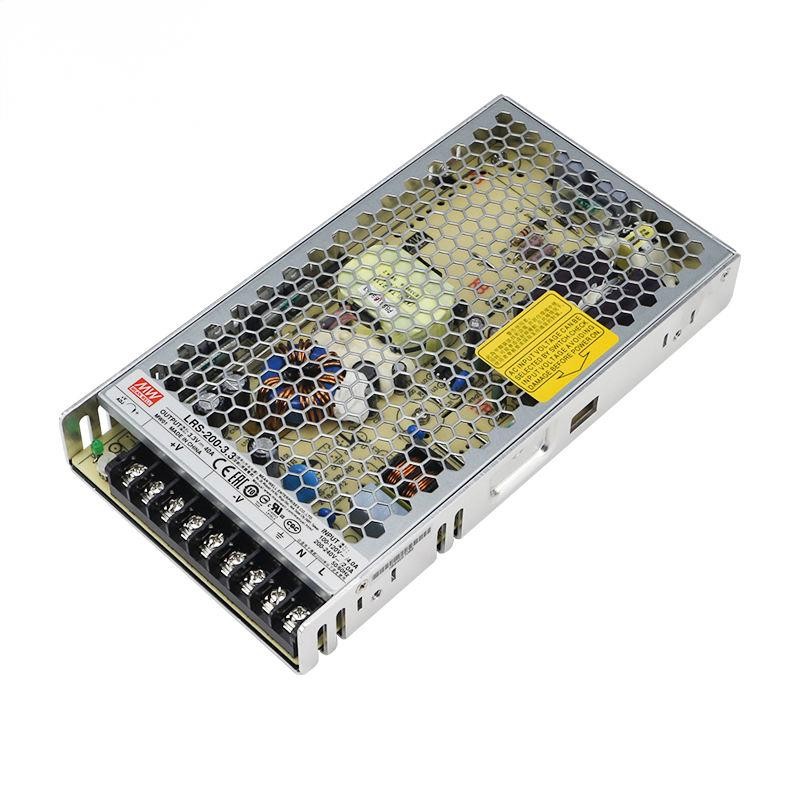

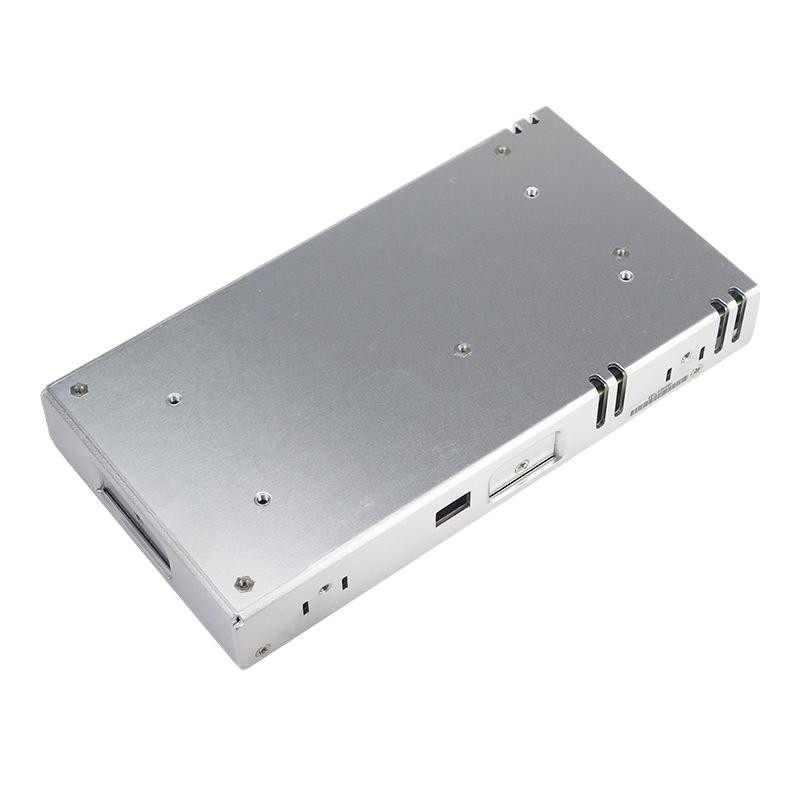

MeanWell LRS-200-12 200W 12V SWITCHING POWER SUPPLY

MeanWell LRS-200-12 200W 12V SWITCHING POWER SUPPLY
LRS-200 series is a 200W single-output enclosed type power supply with 30mm of low profile design. Adopting
the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 3.3V,
4.2V, 5V, 12V, 15V, 24V, 36V and 48V.
In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation
of LRS-200 that the whole series operates from -25°C through 70°C under air convection without a fan.
Delivering an extremely low no load power consumption (less than 0.75W), it allows the end system to
easily meet the worldwide energy requirement. LRS-200 has the complete protection functions and 5G anti-
vibration capability; it is complied with the international safety regulations such as IEC/UL 62368-1.
LRS-200 series serves as a high price-to-performance power supply solution for various industrial
applications.
