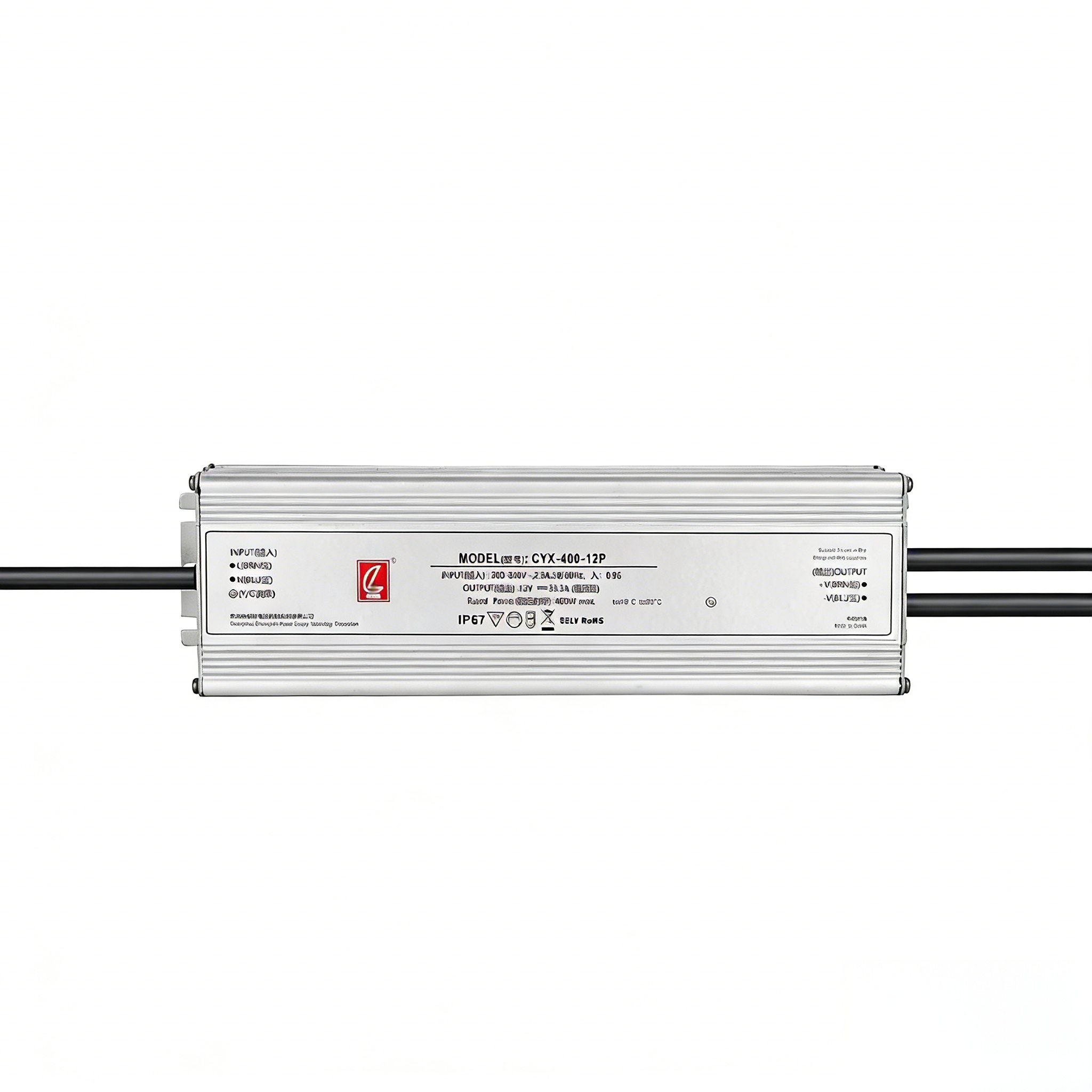

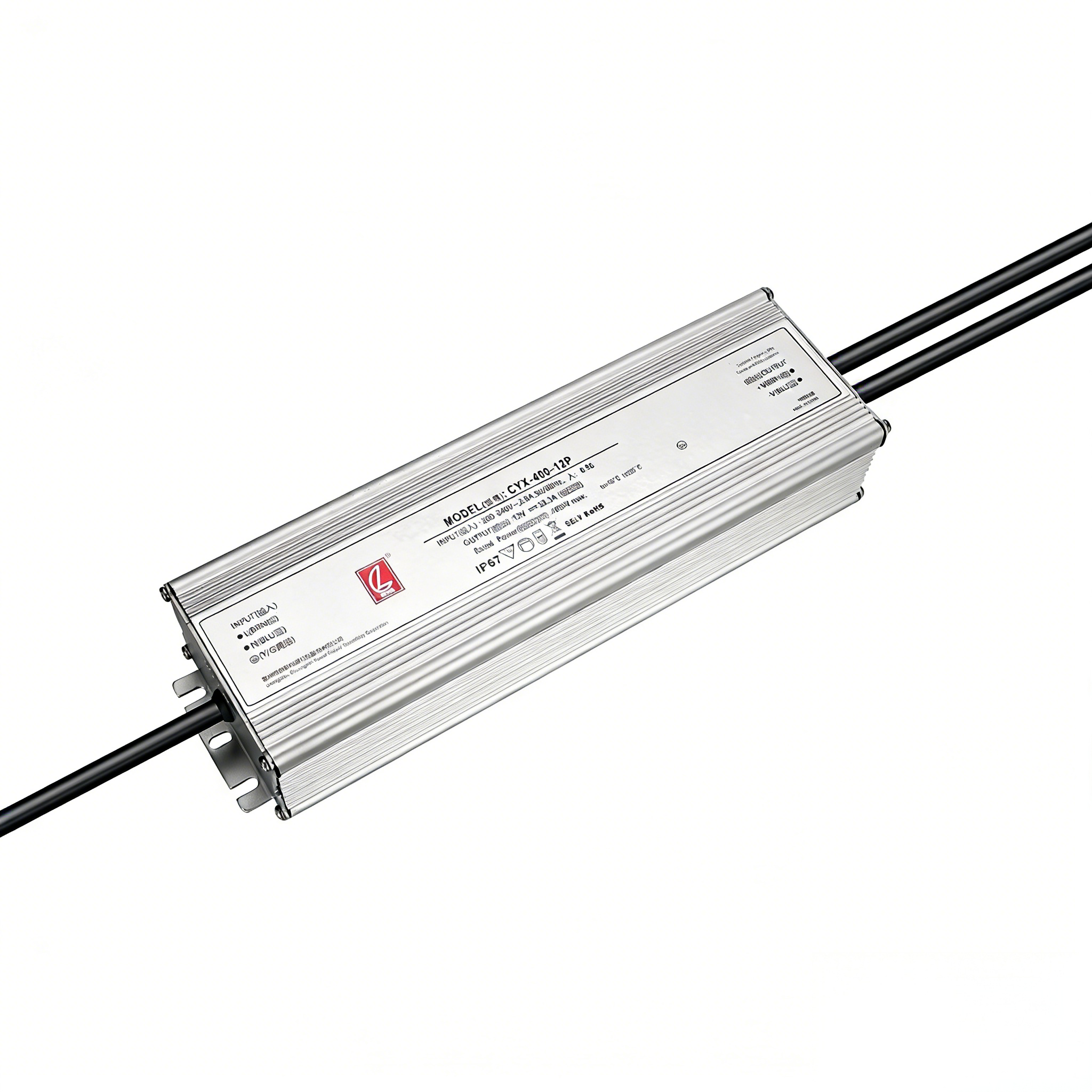

Chuagnlian CYX-400-24P 400W 24V IP67 WATERPROOF POWER SUPPLY
The CYX-400-XP series comprises 400W outdoor LED drivers featuring constant voltage output mode, a wide input voltage range, exceptionally high power factor, and extremely low THD.
This series exhibits high temperature resistance, with a maximum ambient operating temperature of 70°C at full load. It is specifically engineered for LED lighting applications including indoor and outdoor illumination projects. Exceptional conversion efficiency, a compact housing design, effective thermal management, and comprehensive protection mechanisms ensure long-term stable operation.
Input voltage range: 176–264 VAC
High power factor up to 0.95
IP67 protection rating
Surge protection: Line‑to‑line 4 kV, line‑to‑ground 6 kV
Comprehensive protection functions: Output short circuit, over‑voltage, over‑current & over‑temperature protection
Operating temperature range: -40 °C ~ +70 °C
Five‑year warranty
Model List
| Product Model | Output Power (W) | Output Voltage (Vdc) | Adjustable Output Voltage (Vdc) | Output Current (A) | Power Factor | Total Harmonic Distortion | Efficiency @250VAC (Typical Value) |
|---|---|---|---|---|---|---|---|
| CYX-400-12P | 360 | 12 | / | 0-30 | >0.95 | <10% | ≥91.5% |
| CYX-400-15P | 400 | 15 | / | 0-26.7 | >0.95 | <10% | ≥92% |
| CYX-400-24P | 400 | 24 | / | 0-16.7 | >0.95 | <10% | ≥93% |
| CYX-400-36P | 400 | 36 | / | 0-11.1 | >0.95 | <10% | ≥93.5% |
| CYX-400-48P | 400 | 48 | / | 0-8.35 | >0.95 | <10% | ≥94% |
