PARAMETERS

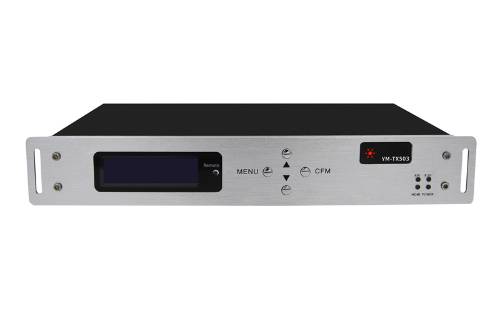

Product name: Master controller YM-TX503
Model: YM-TX503
Size: 288*158*45mm
Weight: 1.57kg
Power consumption: 15W max
Operating power: AC100~240V 50/60Hz
Operating temperature: -20~65℃
Sub-controller: YM-RX203
Output data signal: TTL/RS485
Storage: u disk
Gray level: 32-65536 level
Operating temperature: -20~65℃
Maximum control pixel: 250000
FEATURES
- Online and offline integration, free to switch to offline mode when there is no signal online.
- Adopt standard Ethernet communication protocol, can be connected to switch or fiber optic transceiver.
- A system to support a variety of lamps and lanterns and single-color three-color, four-color lamps and lanterns of centralized control.
- Support online monitoring of state, temperature, voltage and output port of sub-control.
- Support two-way redundant hot backup, the main signal failure will immediately switch the backup signal.
- Support H264 (MPEG-4) format video playback in real time.
- Carrying capacity: 250,000 pixel points.
With synchronous control (online) and asynchronous control (offline) dual function; can synchronize live video of the computer, but also play the video in the U disk; when connected to the computer and inserted into the U disk at the same time, priority playback of the computer's video.
For More details about the controller, pls feel free to contact us at info@archled.net
