Products  > Architectural Lighting  > LED Wall Washer

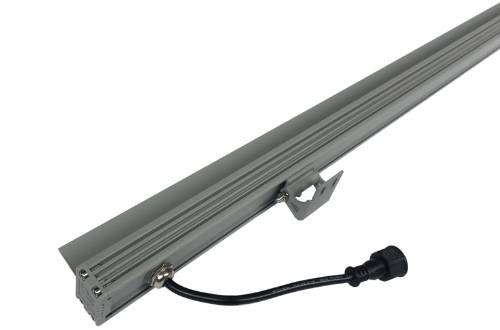

18W DMX Wall Washer RGB W36mm With Shroud

  • Model:WW-03
  • 18W DMX Wall Washer RGB W36mm With Shroud is a fully water resistant and robust bright LED fixture, perfect for both interior and exterior use. Available in range of single colors and DMX controllable RGB. Mount the LED wall washer unit to ceilings, floors and walls with the adjustable bracket for different lighting effects. In addition using corrosion resistant extruded aluminium to make the housing extremely robust and hard wearing. Ideally suited to architectural lighting, landscape lighting, garden lighting, facade lighting, theatres, bridges, hotels, shopping centres, and customized projects.
  • Email:
Product: 18W DMX Wall Washer RGB W36mm With Shroud
Model: WW-03
Dimension: L1000*W36*H25MM
Housing Material : High strength aluminum + Tempered glass
Surface Color : Aluminum color / Dark gray optional / Customized color
Lighting Source: 18pcs 1W LED
Beam Angle: 15°/30°/45°/60°/20°*40°/30°*60°
Chip Brand: Epistar/OSRAM/CREE
Source life: 50,000H
Input Voltage : DC 24V
Rated Power: 18W
Control Mode: DMX512
Address Setting: Auto/Manual
Pixels Per Meter: 1 Pixel
IP Rating: IP66
Warranty: Three Years
Working Temperature: -20~50℃

Remarks:Length/Power can be customized


- Prewired plug connector (male/female) for easy installation

- High quality lens made of polycarbonate , secondary optics with tempered glass cover

- Color Changing RGB/RGBW LEDs

- Flexibility and convenience in use thanks to adjustable mounting bracket

- Multi Auto Address Sub Sections

- Reverse Voltage Input & Over Current Protection

- Robust Extruded and Anodised Aluminium Housing

- Water Resistant to IP66

- Standard DMX interface


These DMX RGB wall washers enhance the architectural design of three specific applications: cove lighting, wall washing, and wall grazing, typically mounted less than a foot from the wall in a slot or recess, and ideally suited for hotels, plazas, museums, buildings, landscape lighting and customized projects.
