PARAMETERS

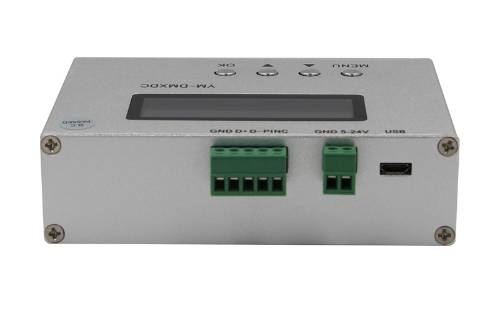

Product name: Addess Writer YM-DMXDC
Model: YM-DMXDC
Size: 115*77*34mm
Weight: 0.2kg
Power consumption: 5W max
Working power: DC5~24V
Operating temperature: -20~75℃
Output control port: 1port
Output data signal: RS485
Storage: SD card
Gray level: 256 levels for each RGB
Operating temperature: -20~65℃
Maximum control pixels: 512
Controllable IC: YM decoding chip and other common DMX512 decoding chip
FEATURES
- The power supply voltage is DC5~24V;
- Equipped with a standard MICRO-USB interface for cell phones, with a mobile power supply, which can be easily operated.
- Support coding mode: UCS, UCS-C, UCSDA, SM1751X, SM1752X, DMX3R, UCSEH, DMX3H, DMX3G, DMX3E, AP-N, SM-AB, SM-4.
- The option to code by fixture or by address.
- With address test function.
- This encoder has 2 modes of encoding and playback.
- With LCD display to show the current operation status.
- EMC electromagnetic compatibility design, with good anti-interference ability.
For More details about the controller, pls feel free to contact us at info@archled.net
